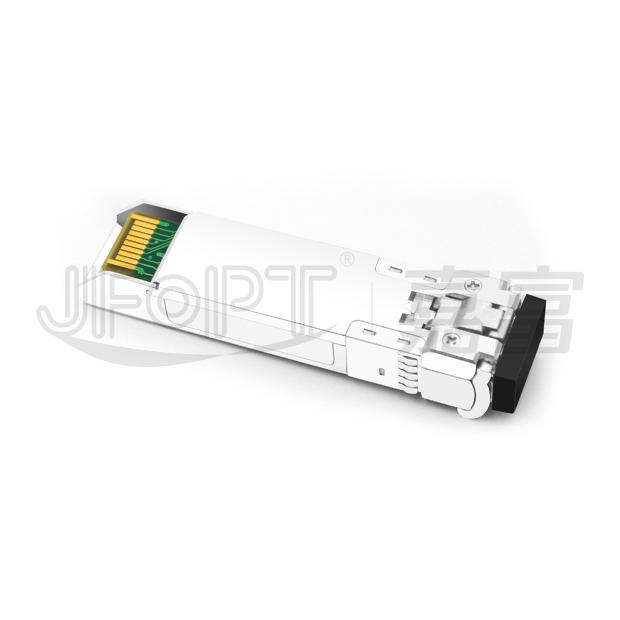

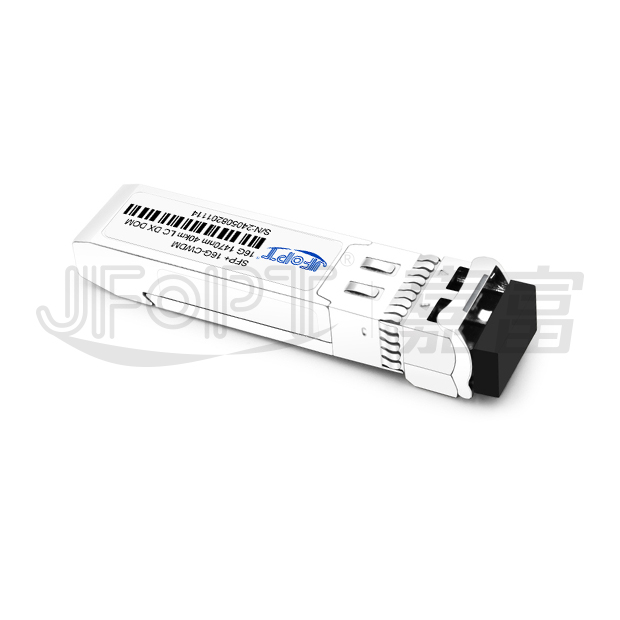

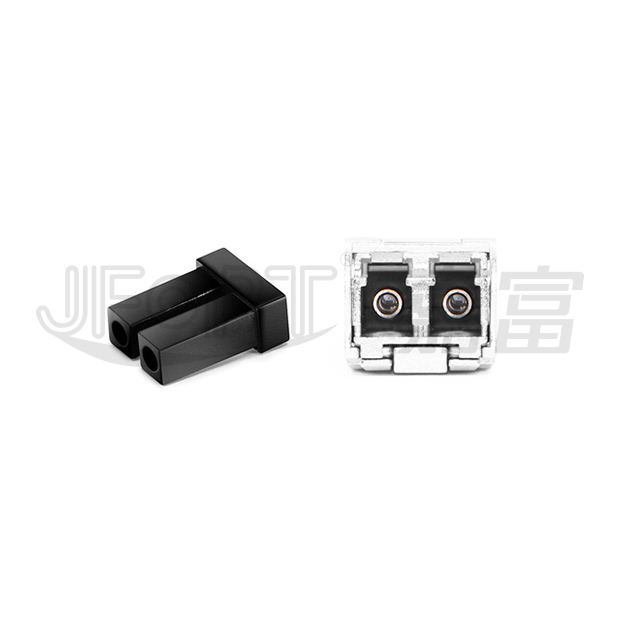

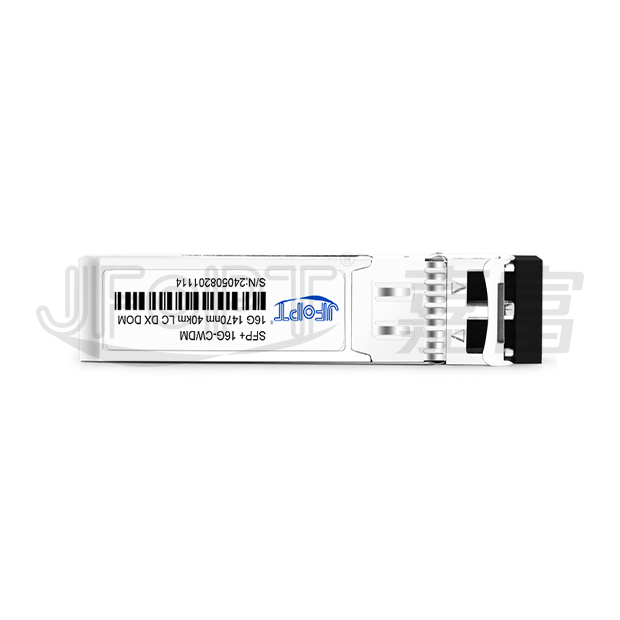

SFP+ 16G CWDM(1470-1610nm) 10/40km LC DX光模塊
16Gbps SFP+ CWDM光模塊
型   號:JFTSM-SFP+16-CW1416-10/40-LCD
分享:
產品詳情
相關資料



  產品型號   JFTSM-SFP+16-CW1416-10/40-LCD   工廠品牌   JFOPT嘉富
  封裝形式   SFP+   光口類型   LC Duplex
  最高總速率   14.025Gbps   每通道速率   14.025Gbps
  最大傳輸距離   40km   功率預算   14dB
  工作波長   1470nm to 1610nm   工作電壓   3.3V
  光纖型號   SMF   纖芯尺寸   9/125
  發射器類型   CWDM
  EML
  接收器類型   IDP
  發射功率   0~4dBm   接收靈敏度   -14dBm
  數字診斷   YES   接收過載   0dBm
  功耗   <1.8W   支持協議   SFF-8431
  SFF-8432
  SFF-8472
  工作溫度(商業級)   0℃~+70℃   儲存溫度(商業級)   -40℃~+85℃





生產線介紹
PRODUCTION LINE INTRODUCTION


JFOPT嘉富持續投入光模塊生產領域,產品覆蓋1*9、SFP、10G、25G、100G、200G、400G、800G GPON/EPON/XG/XGSPON OLT等全系列光模塊。同時為下游同行提供TOSA、ROSA、BOSA等光器件半成品解決方案。JFOPT嘉富生產線具備日產量一萬只光模塊、兩萬只光器件的能力。此外,JFOPT嘉富光模塊擁有業界領先的耐高溫、抗干擾特性,廣泛應用于計算中心、運營商、交通安防、電力設施等行業領域。





產品介紹
PRODUCT PRESENTATION


JFOPT SFP+ 16G CWDM(1470-1610nm)10/40km LC DX系列是一款緊湊型可插拔單模光模塊,專為串行光數據通信設計(支持16倍速/8倍速/4倍速光纖通道應用);該模塊針對單模光纖優化,在1470nm至1610nm標稱CWDM波長范圍內工作(波長間隔20nm),提供14dB光鏈路預算保證。配備SFP+ 20-pin連接器,支持熱插拔功能;發射端采用符合IEC-60825標準1類激光安全的CWDM電吸收調制激光器(EML),接收端則使用PIN探測器與限幅后置放大器IC實現可靠信號接收。該系列模塊完全兼容SFP+多源協議(MSA)規范SFF-8431。

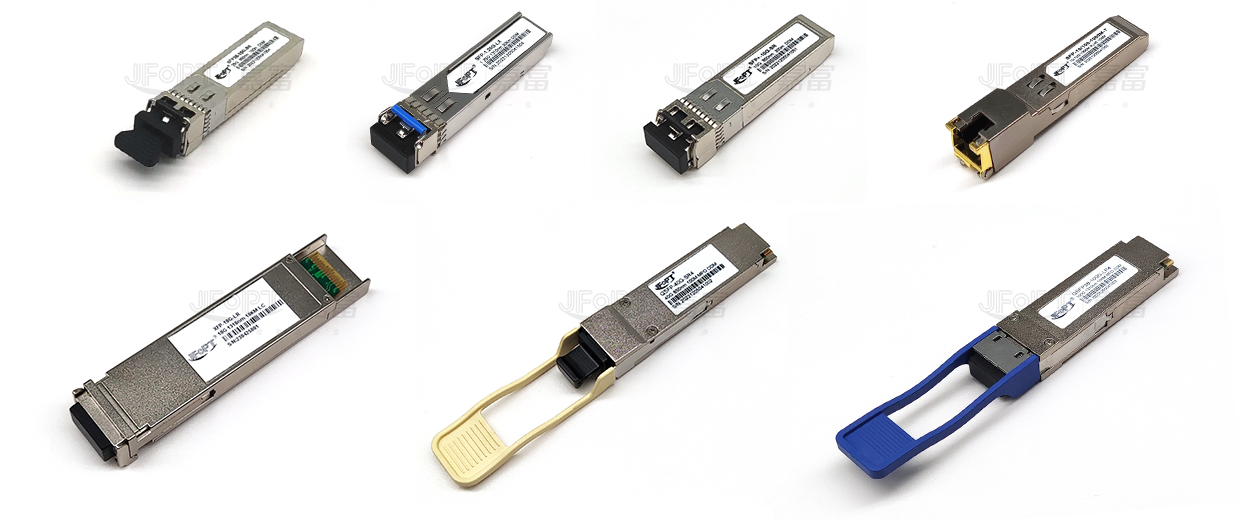

光模塊系列產品
TRANSCEIVER SERIES PRODUCTS

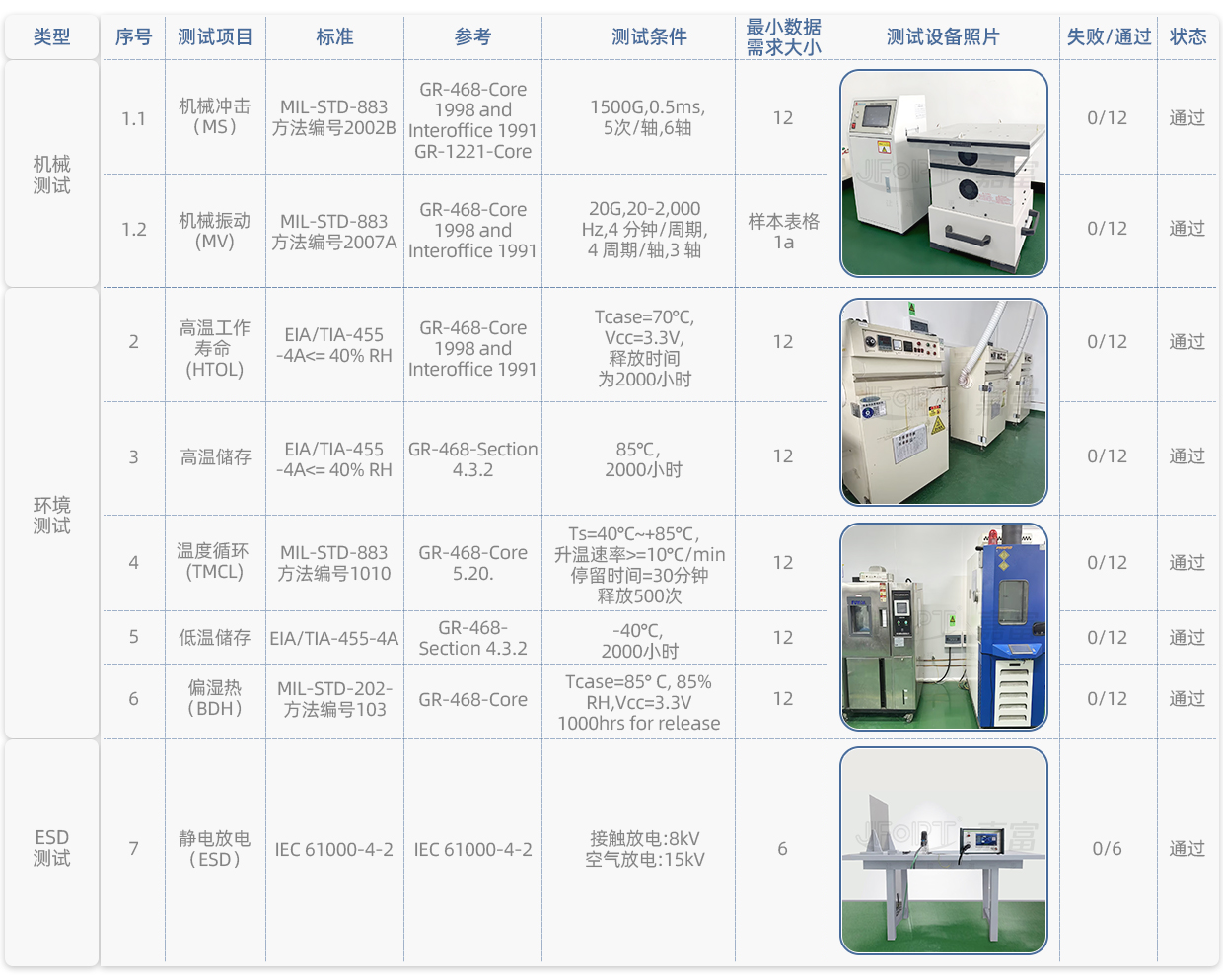

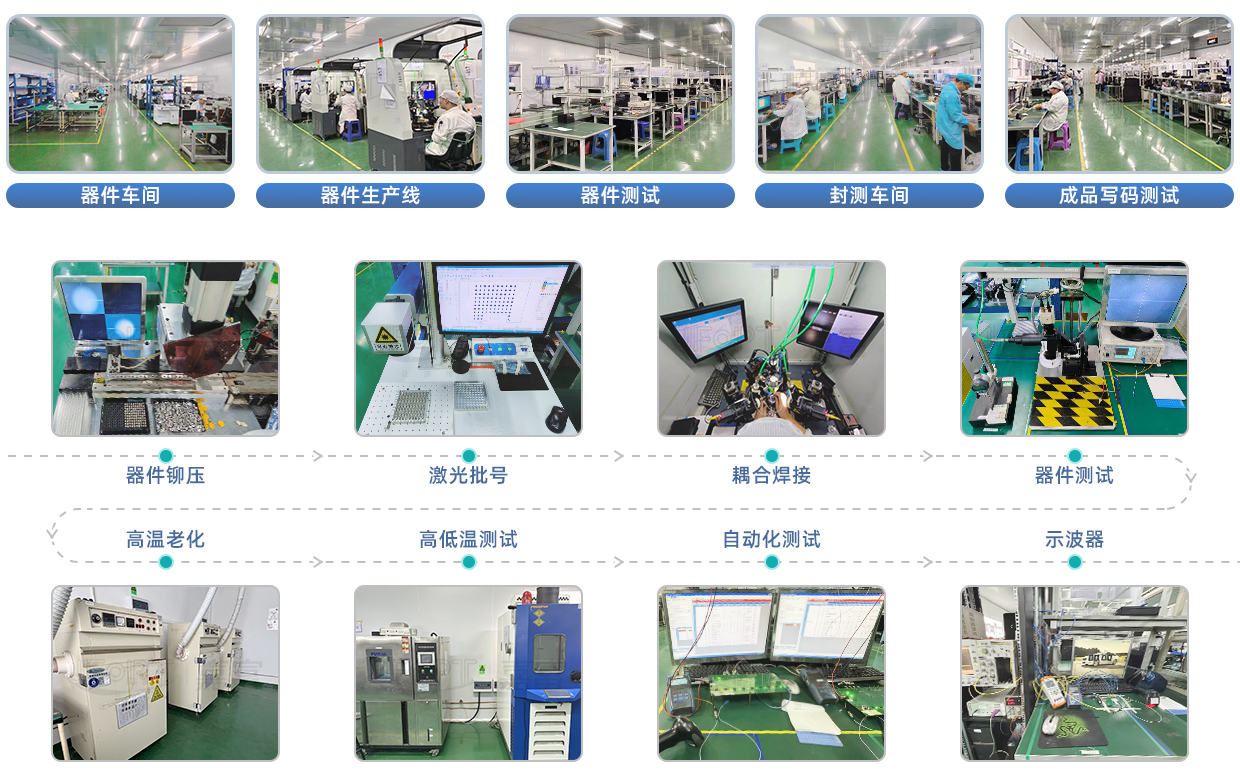

生產及檢測設備
PRODUCTION & TESTING EQUIPMENT







產品特點
FEATURES

Operating data rate up to 14.025Gbps 8-Wavelengths CWDM EML transmitter from 1470nm to 1610nm, with step 20nm
14dB power budget Single 3.3V power supply and TTL logic interface
Duplex LC connector interface Hot pluggable
Power dissipation < 1.8W Operating case temperature
Standard: 0℃~+70℃




應用范圍
APPLICATION


Multi-rate 16x / 8x / 4x fibre channel Other optical links




符合標準
STANDARD COMPLIANCE






訂購信息
ORDER INFORMATION

Part No. Data rate Laser Fiber type Power budget Optical interface Temp. DDMI
JFTSM-SFP+16-CW1416-10/40-LCD 14.025 Gbps CWDM EML SMF 14dB LC Standard YES





絕對最大額定值
ABSOLUTE MAXIMUM RATINGS

Parameter Symbol Min. Max. Unit
Storage temperature Ts -45  +85 °C
Supply voltage Vcc -0.5  3.6  V
Input voltage Vin -0.5  Vcc V

*Note:Exceeding any one of these values may destroy the device permanently.




CWDM*工作波長
CWDM*WAVELENGTH

Band Nomenclature Wavelength(nm)
Min. Typ. Max.
S-band Short Wavelength K 1464 1470 1477.5
L 1484 1490 1497.5
M 1504 1510 1517.5
N 1524 1530 1537.5
C-band Conventional O 1544 1550 1557.5
L-band
Long Wavelength
P 1564 1570 1577.5
Q 1584 1590 1597.5
R 1604 1610 1617.5

  *8 Wavelengths from 1470nm to 1610nm, each step 20nm.





建議操作條件
RECOMMENDED OPERATING CONDITIONS

Parameter Symbol Min. Typical Max. Units
Operating case temperature TC 0 - +70  °C
Power supply voltage Vcc 3.15  3.3  3.45  V
Power supply current Icc - 430 545  mA
Surge current ISurge - - +30  mA
Baud rate JFTSM-SFP+16-CW1416-10/40-LCD 4.25 14.025 - Gbps





性能規范—電氣
PERFORMANCE SPECIFICATIONS – ELECTRICAL

Parameter Symbol Min. Typ. Max Unit Notes

Transmitter

CML inputs(Differential) Vin 250 - 1000 mVpp AC coupled inputs
Input impedance (Differential) Zin 85 100 115 ohms Rin > 100 kohms @ DC
Differential input S-parameter SDD11 - - -10  dB -
Differential to common mode conversion SCD11 - - -10  dB -
Tx_DISABLE input voltage - high - 2 - 3.45 V -
Tx_DISABLE input voltage - low - 0 - 0.8 V -
Tx_FAULT output voltage - high - 2 - Vcc+0.3 V Io = 400µA; Host  Vcc
Tx_FAULT output voltage - low - 0 - 0.5 V Io = -4.0mA

Receiver

CML outputs (Differential) Vout 350 - 700 mVpp AC coupled outputs
Output AC common mode voltage   0   15.0 mV RMS
Output impedance (Differential) Zout 85 100  115  ohm -
Differential output S-parameter SD22 - - -10  dB -
Rx_LOS output voltage - high - 2 - Vcc+0.3 V lo = 400µA; host Vcc
Rx_LOS output voltage - low - 0
-
0.8
V lo = -4.0mA
MOD_DEF ( 0:2 ) VoH 2.5 - - V With serial ID
VoL 0 - 0.5 V





性能規范—光學
PERFORMANCE SPECIFICATIONS – OPTICAL

Parameter Symbol Min. Typical Max. Unit
Power budget - - 14 - dB
Data rate - 4.25 14.025 - Gbps

Transmitter

Optical wavelength λ λc–6 λc λc+7.5 nm
-20dB spectrum width Δλ - - 1 nm
Side mode suppression ratio SMSR 30 - - dB
Average output power Pout 0 - +4  dBm
Extinction ratio ER 8.2 - - dB
Average power of OFF transmitter POFF - - -30 dBm
Transmitter dispersion penalty TDP - - 2.5 dB
TX disable assert time t_off - - 10 us
TX_DISABLE negate time t_on - - 1 ms
TX_BISABLE time to start reset t_reset 10 - - us
Time to initialize, include reset of TX_FAULT t_init - - 300 ms
TX_FAULT from fault to assertion t_fault - - 100 us
Total jitter TJ - - 0.28 UI(p-p)
Data dependant  jitter DDJ - - 0.1 UI(p-p)
Uncorrelated jitter UJ - - 0.023 RMS

Receiver

Centre wavelength λ 1260 - 1620 nm
Sensitivity Pmin - - -14 dBm
Receiver overload Pmax 0 - - dBm
Optical return loss ORL - - -12 dB
LOS de-assert LOSD - - -16 dBm
LOS assert LOSA -26 - - dBm
LOS High - 2.0  - VCC+0.3 V
Low - 0 - 0.8

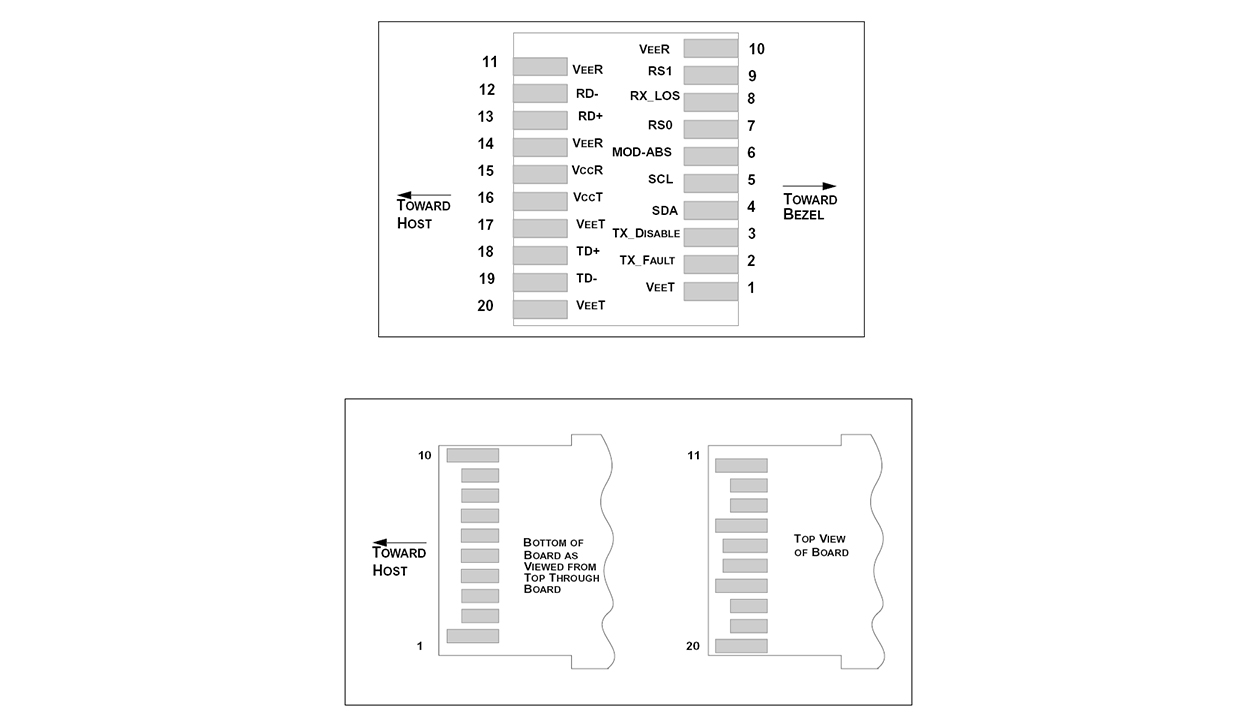

SFP+收發器電氣焊盤布局
SFP+ TRANSCEIVER ELECTRICAL PAD LAYOUT






引腳功能定義
PIN FUNCTION DEFINITIONS

Pin Num. Name Function Plug Seq. Notes
VeeT Transmitter ground Note 5
TX fault Transmitter fault indication Note 1
TX disable Transmitter disable Note 2, module disables on high or open
SDA Module definition 2 2-Wire serial interface data line.
SCL Module definition 1 2-Wire serial Interface clock.
MOD_ABS Module definition 0 Note 3
RS0 RX rate select(LVTTL). Rate select 0, optionally controls SFP+ module receiver. This pin is pulled low to VeeT with a>30K resistor.
LOS Loss of signal Note 4
RS1 TX rate select(LVTTL). Rate select 1, optionally controls SFP+ module transmitter. This pin is pulled low to VeeT with a >30K resistor.
10  VeeR Receiver ground Note 5
11  VeeR Receiver ground Note 5
12  RD- Inv. received data out 3 Note 6
13  RD+ Received data out 3 Note 7
14  VeeR Receiver ground Note 5
15  VccR Receiver power 3.3V ± 5%, Note 7
16  VccT Transmitter power 3.3V ± 5%, Note 7
17  VeeT Transmitter ground Note 5
18  TD+ Transmit data in Note 8
19  TD- Inv. transmit data in Note 8
20  VeeT Transmitter ground Note 5


Notes:
1) TX Fault is an open collector/drain output, which should be pulled up with a 4.7K – 10KΩ resistor on the host board. Pull up voltage between 2.0V and VccT/R+0.3V. When high, output indicates a laser fault of some kind. Low indicates normal operation. In the low state, the output will be pulled to < 0.8V.

2) TX disable is an input that is used to shut down the transmitter optical output. It is pulled up within the module with a 4.7K – 10 KΩ resistor. Its states are:
Low (0 – 0.8V): Transmitter on
(>0.8, < 2.0V): Undefined
High(2.0 – 3.465V): Transmitter Disabled
Open: Transmitter Disabled

3) Module Absent, connected to VeeT or VeeR in the module.

4) LOS (Loss of Signal) is an open collector/drain output, which should be pulled up with a 4.7K – 10KΩ resistor. Pull up voltage between 2.0V and VccT/R+0.3V. When high, this output indicates the received optical power is below the worst-case receiver sensitivity (as defined by the standard in use). Low indicates normal operation. In the low state, the output will be pulled to < 0.8V.

5) The module signal ground contacts, VeeR and VeeT, should be isolated from the module case.

6) RD-/+: These are the differential receiver outputs. They are AC coupled 100Ω differential lines which should be terminated with 100Ω (differential) at the user SERDES. The AC coupling is done inside the module and is thus not required on the host board. The voltage swing on these lines will be between 350 and 700 mV differential (175 –350 mV single ended) when properly terminated.

7) VccR and VccT are the receiver and transmitter power supplies. They are defined as 3.3V ±5% at the SFP+ connector pin. Maximum supply current is 430mA. Recommended host board power supply filtering is shown below. Inductors with DC resistance of less than 1 ohm should be used in order to maintain the required voltage at the SFP+ input pin with 3.3V supply voltage. When the recommended supply-filtering network is used, hot plugging of the SFP+ transceiver module will result in an inrush current of no more than 30mA greater than the steady state value. VccR and VccT may be internally connected within the SFP+ transceiver module.

 8) TD-/+: These are the differential transmitter inputs. They are AC-coupled, differential lines with 100Ω differential termination inside the module. The AC coupling is done inside the module and is thus not required on the host board. The inputs will accept differential swings of 150 – 1200 mV (75 – 600mV single-ended).
