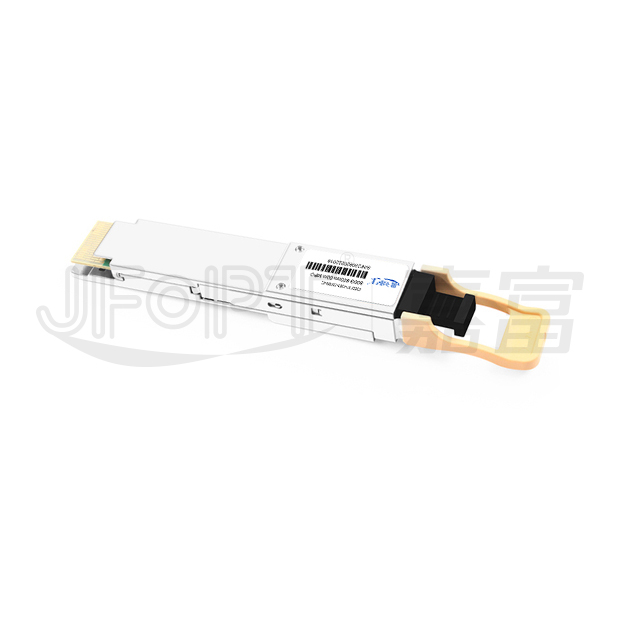

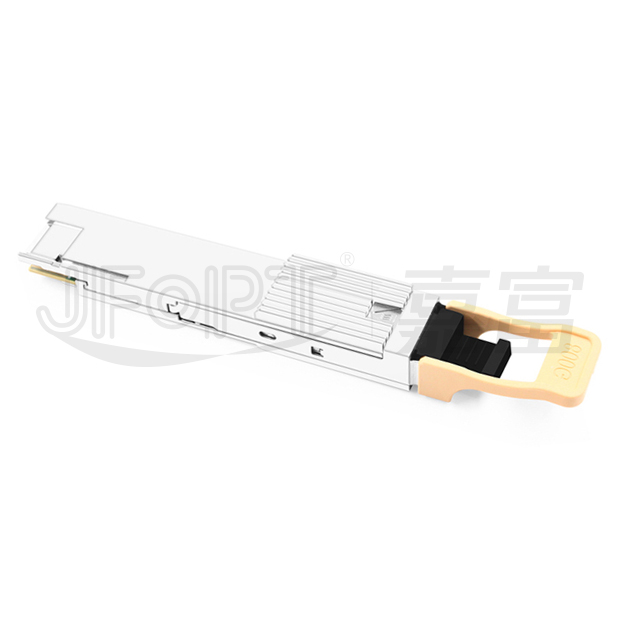

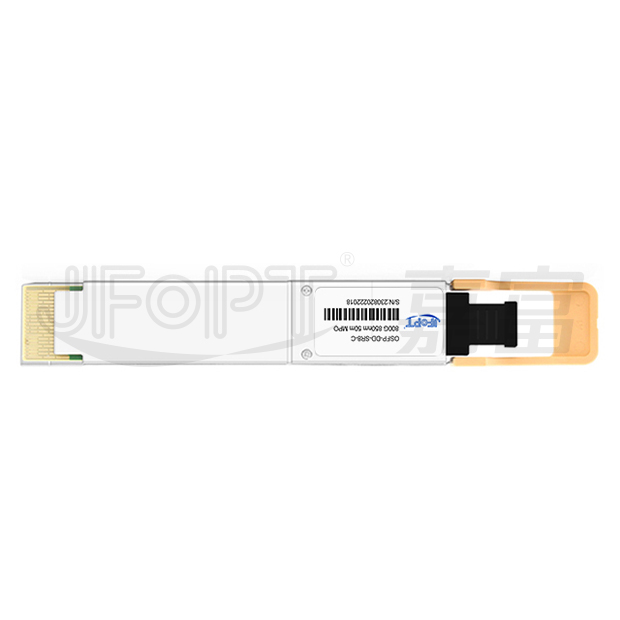

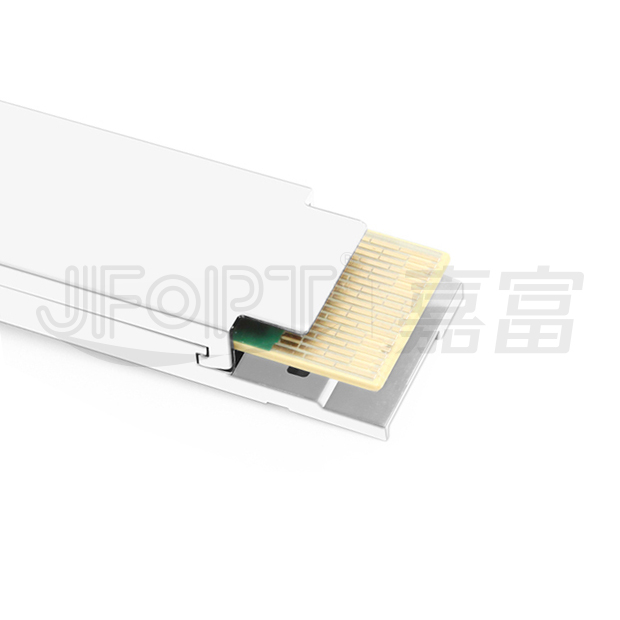

產品型號
|
JFTSM-QSFPDD-800(8x100)-05(DR)/2(FR)/10(LR)-MPO16
|
工廠品牌
|
JFOPT嘉富
|
封裝形式
|
QSFPDD
|
光口類型
|
MPO 16C
|
最高總速率
|
800Gbps
|
每通道速率
|
106.25 Gb/s
|
OM3最大傳輸距離
|
30m
|
OM4最大傳輸距離
|
50m
|
工作波長
|
850nm
|
工作電壓
|
3.3V
|
光纖型號
|
MMF
|
纖芯尺寸
|
50/125
|
發射器類型
|
VCSEL
|
接收器類型
|
PIN
|
發射功率
|
-4.6~4.0dBm
|
接收靈敏度
|
-6.5dBm
|
數字診斷(DOM)
|
YES
|
接收過載
|
4dBm
|
功耗
|
<14W
|
支持協議
|
800G SR8 Ethernet
|
工作溫度(商業級)
|
0℃~+70℃
|
儲存溫度(商業級)
|
-40℃~+85℃
|

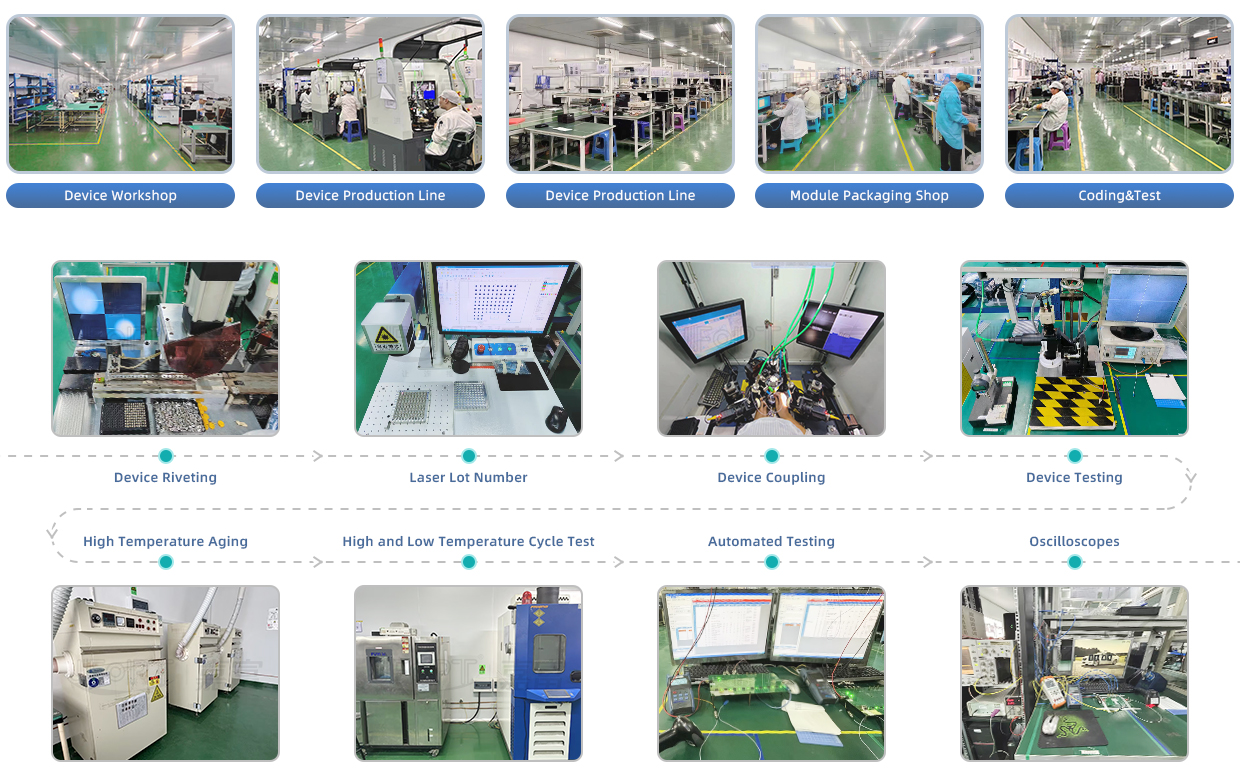

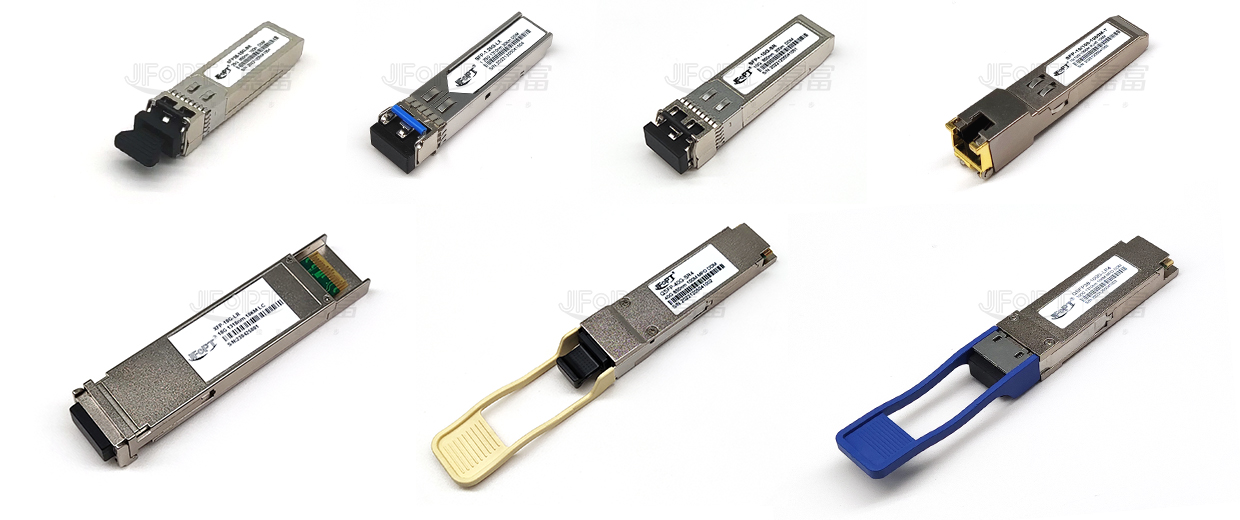

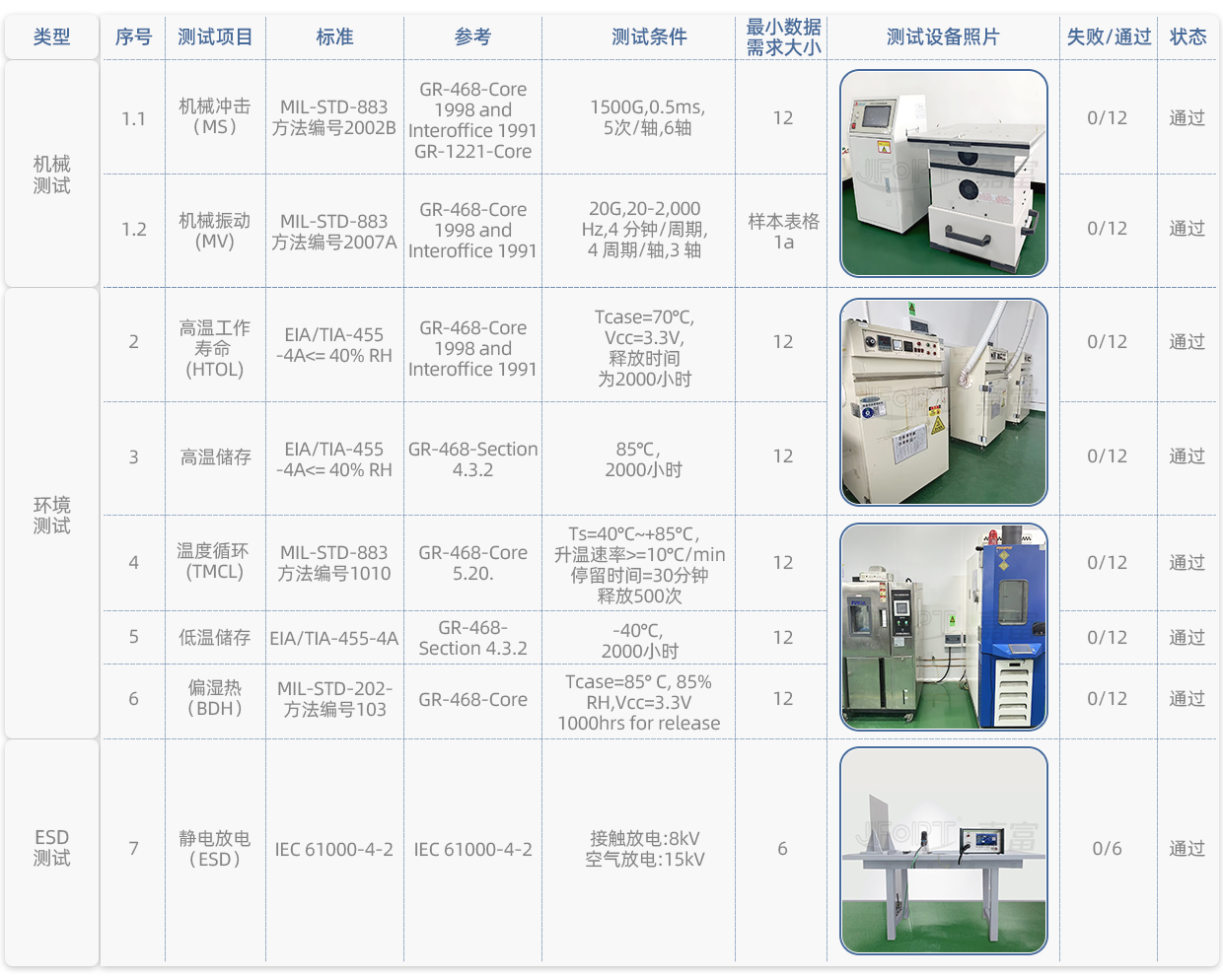

JFOPT嘉富持續投入光模塊生產領域,產品覆蓋1*9、SFP、10G、25G、100G、200G、400G、800G GPON/EPON/XG/XGSPON OLT等全系列光模塊。同時為下游同行提供TOSA、ROSA、BOSA等光器件半成品解決方案。JFOPT嘉富生產線具備日產量一萬只光模塊、兩萬只光器件的能力。此外,JFOPT嘉富光模塊擁有業界領先的耐高溫、抗干擾特性,廣泛應用于計算中心、運營商、交通安防、電力設施等行業領域。
Hot-pluggable QSFP-DD form factor | Data rate 106.25 Gb/s PAM4 per lane | ||||||||
8x106Gbps PAM4 transmitter and PAM4 receiver | 8 channels 850nm VCSEL laser array and 8 channels PIN photo-detector array | ||||||||
Maximum link length of 30m on OM3 MMF and 50m on OM4 MMF | Digital diagnostics functions are available via the I2C interface | ||||||||

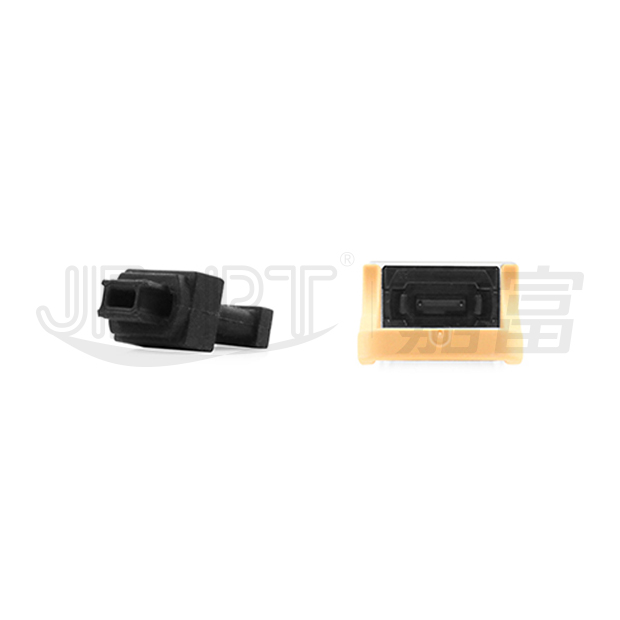

Single 3.3V power supply and power dissipation<14W | MPO-16 connector | ||||||||
Operating Case Temperature:0℃~+70℃ |
800G SR8 ethernet |
Parameter | Symbol | Min. | Max. | Unit | |||||
Power supply voltage | VCC | -0.5 | +3.6 | V | |||||
Storage temperature | TC | -40 | +85 | ℃ | |||||
Relative humidity | RH | 5 | 85 | % |
These values represent the damage threshold of the module.Stress in excess of any of the individual absolute maximum ratingscan cause immediate catastrophic damage to the module even if all other parameters are within recommended operating conditions.
Parameter | Symbol | Min | Typical | Max | Unit | ||||
Power supply voltage | VCC | 3.15 | 3.30 | 3.45 | V | ||||
Operating case temperature | Tca | 0 | - | 70 | ℃ |
Recommended operating environment specifies parameters for which the electrical and optical characteristics hold unless otherwise noted.
Parameter | Symbol | Min | Typical | Max | Unit | Notes | |||
Data rate per lane | DR | - | 106.25 | - | Gbps | - | |||
Transmitter |
|||||||||
Single ended output voltage tolerance | - | -0.3 | - | 4.0 | V | - | |||
Common mode voltage tolerance | - | 15 | - | - | mV | - | |||
Input differential impedance | Rin | - | 100 | - | Ω | - | |||
Differential input voltage swing | Vin | 300 | - | 1100 | mV | - | |||
Tx fault | VoL | -0.3 | - | 0.4 | V | At 0.7mA | |||
Receiver |
|||||||||
Single ended output voltage tolerance | - | -0.3 | - | 4 | V | - | |||
Differential output swing | Vout | 300 | - | 900 | mV | - | |||
Output differential impedance | Rout | - | 100 | - | Ω | - |
The following electrical characteristics are defined over the recommended operating environment unless otherwise specified.
Parameter | Symbol | Min | Typical | Max | Unit | Notes | |||
Transmitter |
|||||||||
Center wavelength | λ | 844 | 850 | 863 | nm | - | |||
RMS spectral width | Pm | - | - | 0.6 | nm | 1 | |||
Average optical power | Po | -4.6 | - | 4 | dBm | 2 | |||
Extinction ratio | ER | 2.5 | - | - | dBm | - | |||
Optical modulation amplitude(OMAouter) (max) |
OMA | 3.5 | dBm | - | |||||
Optical Modulation Amplitude(OMAouter) (min) max(TECQ,TDECQ)≤1.8dB 1.8 |
-2.6 4.4+max(TECQ,TDECQ) |
- | |||||||
Transmitter and dispersion eye closure | TDECQ | - | - | 4.4 | dB | - | |||
Transmitter eye closure | TDEC | - | - | 4.4 | dB | - | |||
Optical return loss tolerance | ORL | - | - | 14 | dB | - | |||
Receiver | |||||||||
Center wavelength | λ | 842 | 850 | 948 | nm | ![]() |
|||
Average receive power,each lane | - | -6.4 | - | 4 | dBm | - | |||
Receive power(OMAouter),each lane | - | - | - | 3.5 | dBm | - | |||
Receiver sensitivity(OMAouter) Max(TECQ,TDECQ)≤1.8dB 1.8 |
Psens | -4.6 -6.4+TECQ |
dBm | 3 | |||||
LOS asserted | Lsa | -15 | - | - | dBm | - | |||
LOS De-asserted | Lda | - | - | -6.6 | dBm | - | |||
LOS hysteresis | Lh | 0.5 | - | - | dB | - | |||
Note: [1]Trade-offs are available between spectralwidth,center wavelength and minimum OMA. [2]The optical power is launched into MMF. [3]BER=2.4E-4;PRBS31Q@53.125GBd. |
The following optical characteristics are defined over the recommended operating environment unless otherwise specified.

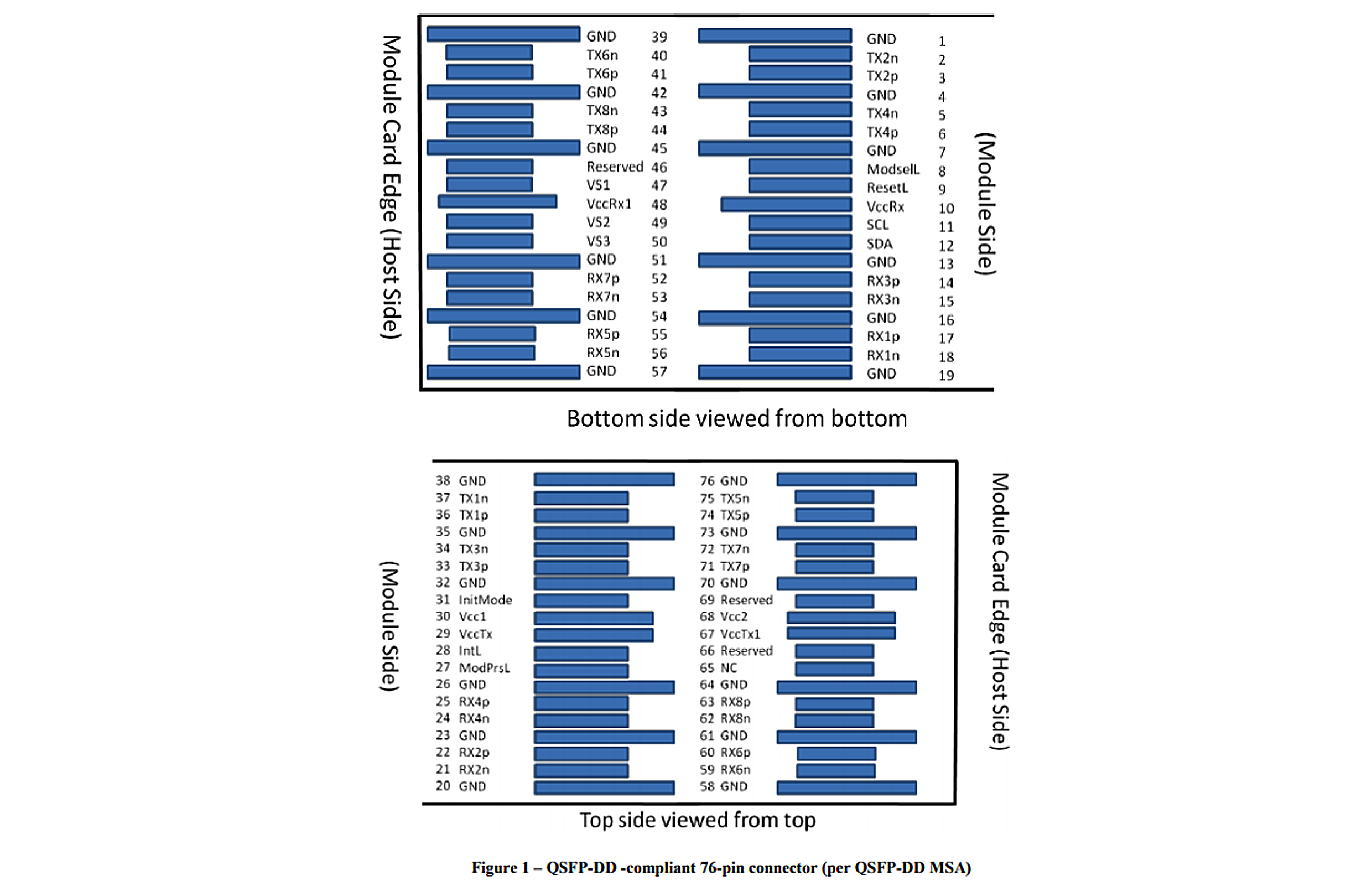

Pin | Symbol | Name/Description | |||||||
1 | GND | Ground | |||||||
2 | Tx2n | Transmitter inverted data input | |||||||
3 | Tx2p | Transmitter non-inverted data input | |||||||
4 | GND | Ground | |||||||
5 | Tx4n | Transmitter inverted data input | |||||||
6 | Tx4p | Transmitter non-inverted data input | |||||||
7 | GND | Ground | |||||||
8 | ModSelL | Module select | |||||||
9 | ResetL | Module reset | |||||||
10 | VCCRx | +3.3V power supply receiver | |||||||
11 | SCL | 2-wire serial interface clock | |||||||
12 | SDA | 2-wire serial interface data | |||||||
13 | GND | Ground | |||||||
14 | Rx3p | Receiver non-inverted data output | |||||||
15 | Rx3n | Receiver inverted data output | |||||||
16 | GND | Ground | |||||||
17 | Rxlp | Receiver non-inverted data output | |||||||
18 | Rx1n | Receiver inverted data output | |||||||
19 | GND | Ground | |||||||
20 | GND | Ground | |||||||
21 | Rx2n | Receiver inverted data output | |||||||
22 | Rx2p | Receiver non-inverted data output | |||||||
23 | GND | Ground | |||||||
24 | Rx4n | Receiver inverted data output | |||||||
25 | Rx4p | Receiver non-inverted data output | |||||||
26 | GND | Ground | |||||||
27 | ModPrsL | Module present | |||||||
28 | IntL | Interrupt | |||||||
29 | VCCTx | +3.3V power supply transmitter | |||||||
30 | VCC1 | +3.3V power supply | |||||||
31 | LPMode | Low power mode | |||||||
32 | GND | Ground | |||||||
33 | Tx3p | Transmitter non-inverted data input | |||||||
34 | Tx3n | Transmitter inverted data input | |||||||
35 | GND | Ground | |||||||
36 | Txlp | Transmitter non-inverted dataInput | |||||||
37 | Tx1n | Transmitter inverted data input | |||||||
38 | GND | Ground | |||||||
39 | GND | Ground | |||||||
40 | Tx6n | Transmitter inverted data input | |||||||
41 | Tx6p | Transmitter non-inverted data input | |||||||
42 | GND | Ground | |||||||
43 | Tx8p | Transmitter inverted data input | |||||||
44 | GND | Transmitter non-inverted data input | |||||||
45 | Reserved | Ground | |||||||
46 | VS1 | For future use | |||||||
47 | Vcc Rx1 | Module vender dpecific 1 | |||||||
48 | VS2 | +3.3V uhower supply receiver | |||||||
49 | VS3 | Module ender specific 2 | |||||||
50 | GND | Module vender apecific 3 | |||||||
51 | Rx7p | Ground | |||||||
52 | Rx7n | Receiver non-inverted data output | |||||||
53 | GND | Receiver inverted data output | |||||||
54 | Rx5p | Ground | |||||||
55 | Rx5n | Receiver non-onverted data output | |||||||
56 | GND | Receiver inverted data output | |||||||
57 | GND | Ground | |||||||
58 | Rx6n | Ground | |||||||
59 | Rx6p | Receiver inverted data output | |||||||
60 | GND | Receiver non-inverted data output | |||||||
61 | Rx8n | Ground | |||||||
62 | Rx8p | Receiver inverted data output | |||||||
63 | GND | Receiver non-inverted data output | |||||||
64 | NC | Ground | |||||||
65 | Reserved | No Connect | |||||||
66 | VCCTx1 | For future use | |||||||
67 | VCC2 | +3.3V Power supply transmitter | |||||||
68 | Reserved | +3.3V power supply | |||||||
69 | GND | For future use | |||||||
70 | Tx7p | Ground | |||||||
71 | Tx7n | Transmitter non-inverted data input | |||||||
72 | GND | Transmitter inverted data input | |||||||
73 | Tx5p | Ground | |||||||
74 | Tx5p | Transmitter non-Inverted data input | |||||||
75 | Tx5n | Transmitter inverted data input | |||||||
76 | GND | Ground |
