產品型號
|
JFTSM-SFP+CO-10A-003-RJ45
|
工廠品牌
|
JFOPT嘉富
|
|
封裝形式
|
SFP+
|
接口類型
|
RJ45
|
|
最高總速率
|
10.3Gbps
|
10G 最大傳輸距離
|
30m
|
|
支持熱插拔
|
YES
|
工作電壓
|
3.3V
|
|
功耗
|
1.5W
|
支持協議
|
SFP MSA SFF-8472
|
|
工作溫度(擴展級)
|
-10℃~+70℃
|
儲存溫度（商業級）
|
-40℃~+85℃
|
|
工作溫度(工業級)
|
-40℃~+85℃
|
儲存溫度（工業級）
|
-40℃~+85℃
|
生產線介紹
PRODUCTION LINE INTRODUCTION
JFOPT嘉富持續投入光模塊生產領域，產品覆蓋1*9、SFP、10G、25G、100G、200G、400G、800G GPON/EPON/XG/XGSPON OLT等全系列光模塊。同時為下游同行提供TOSA、ROSA、BOSA等光器件半成品解決方案。JFOPT嘉富生產線具備日產量一萬只光模塊、兩萬只光器件的能力。此外，JFOPT嘉富光模塊擁有業界領先的耐高溫、抗干擾特性，廣泛應用于計算中心、運營商、交通安防、電力設施等行業領域。
產品介紹
PRODUCT PRESENTATION

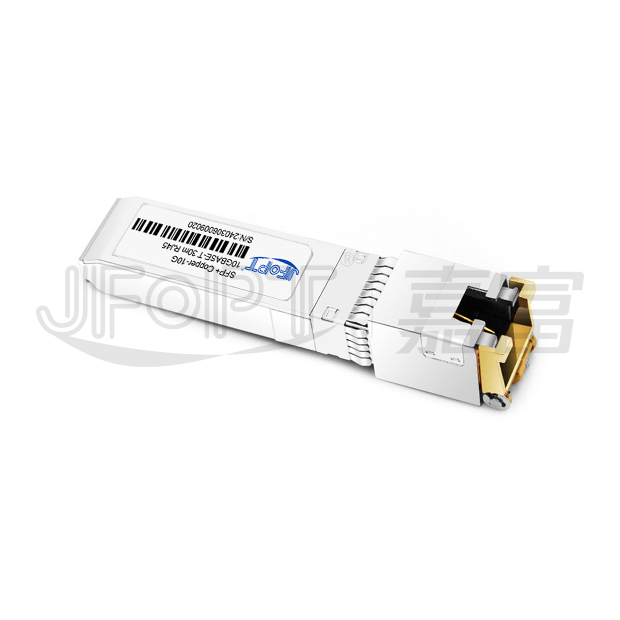

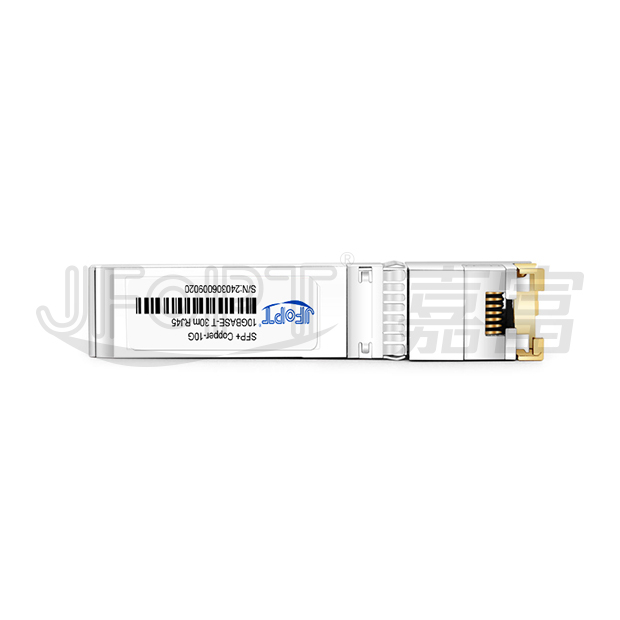

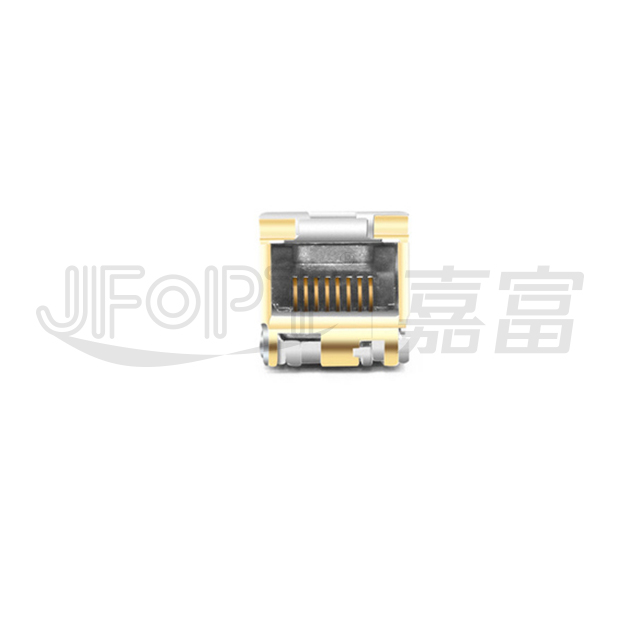

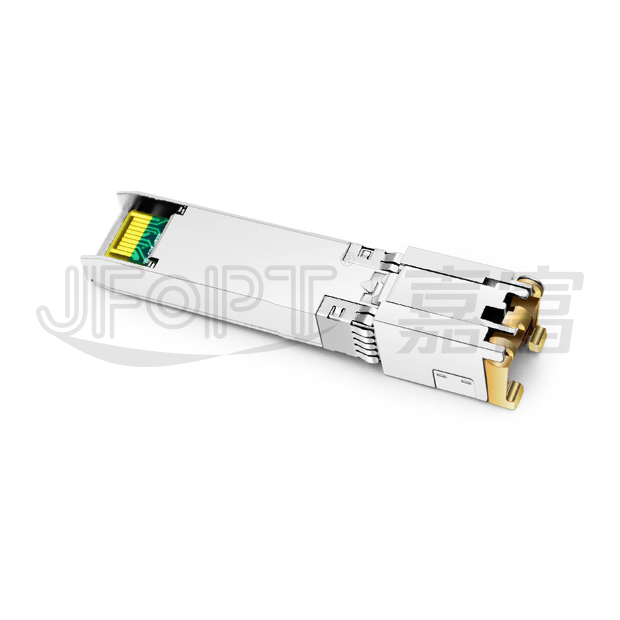

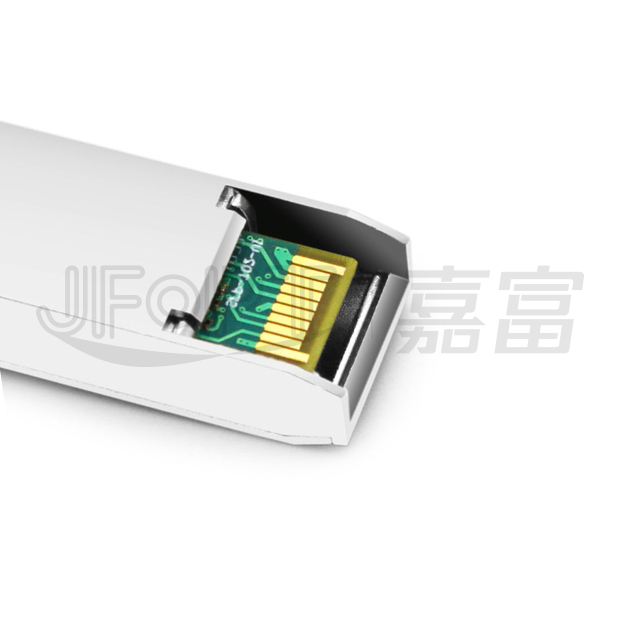

JFOPT SFP+ Copper 10GBASE-T 30m RJ45光模塊（增強型小型可插拔）嚴格遵循SFP多源協議（MSA），傳輸距離達30米。該光模塊完全符合IEEE 802.3an（10GBASE-T）、IEEE 802.3ab（1000BASE-T）及IEEE 802.3au（100BASE-TX）標準規范。

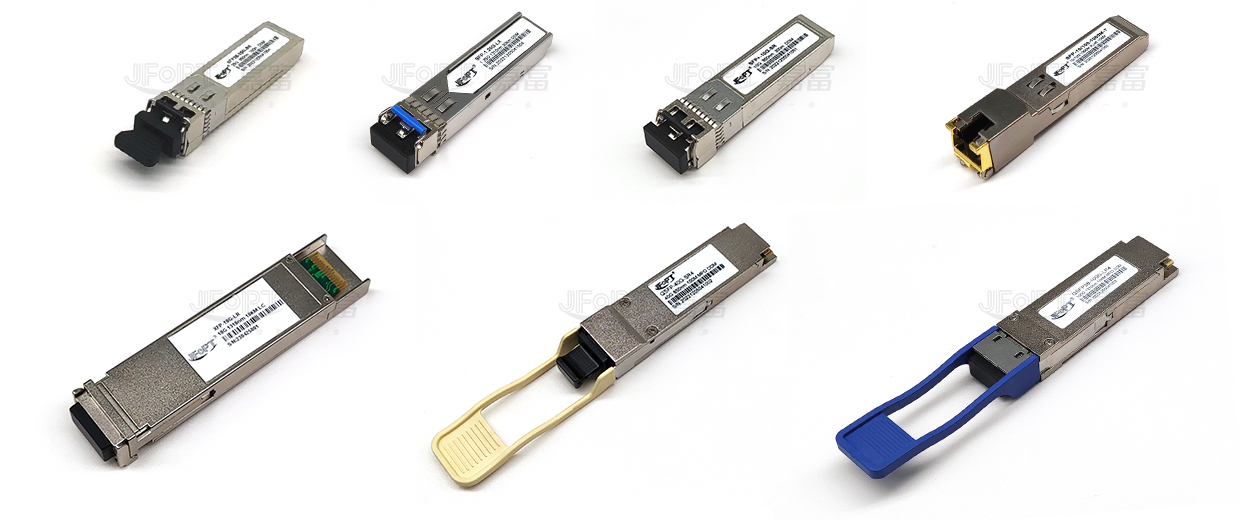

光模塊系列產品
TRANSCEIVER SERIES PRODUCTS

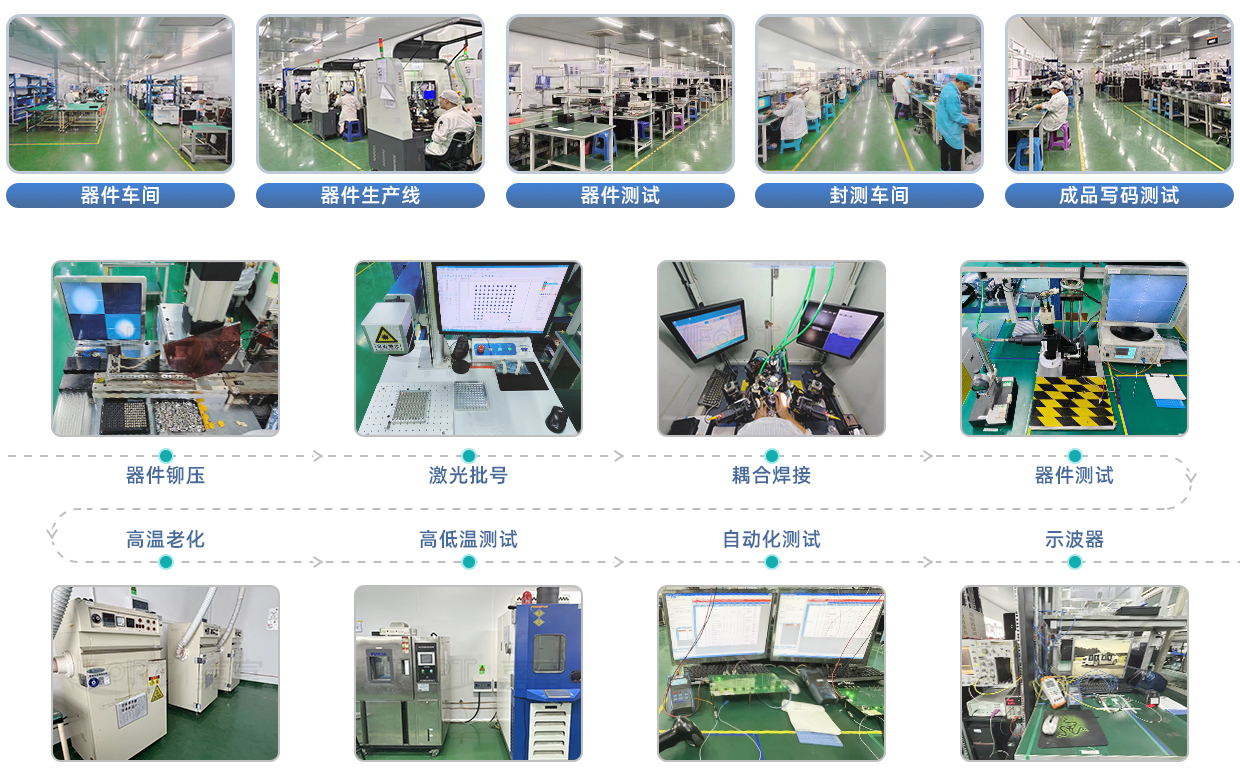

生產及檢測設備
PRODUCTION & TESTING EQUIPMENT
產品特點
FEATURES
| Support 10GBASE-T operation in host systems and auto-negotiation to lower speed | Support RX_LOS as Link indication function | ||||||||
| Hot-Pluggable SFP Footprint | Compact RJ-45 connector assembly | ||||||||
| Compliant with SFP MSA |
Operating case temperature：
Extended：-10℃~70℃
Industrial: -40℃~85℃
|
||||||||
| Safety Certification: TUV/UL/FDA |
應用范圍
APPLICATION
| 10G BASE-T IEEE 802.3an | 5GBASE-T 802.3bz | ||||||||
| 2.5GBASE-T 802.3bz | 1000BASE-T IEEE 802.3ab | ||||||||
| 100BASE-TX IEEE 802.3u | 5GBASE-T Broadcom MGBASE-T | ||||||||
| 2.5GBASE-T Broadcom MGBASE-T |
符合標準
STANDARD COMPLIANCE
訂購信息
ORDER INFORMATION
| Part No. | Data Rate | Media Type | Distance | Connector | Temperature | |||
| JFTSM-SFP+CO-10A-003-RJ45 | 10G | CAT6A/CAT7 | 30m | RJ45 | Extended | |||
絕對最大額定值
ABSOLUTE MAXIMUM RATINGS
| Parameter | Symbol | Min. | Typ. | Max. | Units | |||
| Maximum supply voltage | Vcc | -0.5 | - | 4.0 | V | |||
| Storage temperature | TS | -40 | - | 85 | °C | |||
正常工作條件
NORMAL OPERATING CONDITION
| Parameter | Symbol | Min | Typ. | Max | Units | |||
| Operating case temperature | Tc | JFTSM-SFP+CO-10A-003-RJ45 | -10 | - | 70 | °C | ||
| Supply voltage | Vcc | 3.15 | 3.3 | 3.45 | V | |||
電氣特性
ELECTRICAL CHARACTERISTICS
| Parameter | Symbol | Min | Typ. | Max | Units | Notes/Conditions | ||
+3.3 Volt Electrical Power Interface |
||||||||
| Supply Current |
Icc | - | - | 710 | mA | SNC-SFP+CO-10A-003-RJ45 | ||
| Input voltage | Vcc | 3.15 | 3.3 | 3.45 | V | - | ||
Low-Speed Signals, Electronic Characteristics |
||||||||
| SFP output low | VOL | 0 | - | 0.5 | V | 4.7k to 10k pull-up to host_Vcc, measured at host side of connector | ||
| SFP output high | VOH | Vcc–0.5 | - | Vcc+0.3 | - | 4.7k to 10k pull-up to host_Vcc, measured at host side of connector | ||
| SFP input low | VIL | 0 | - | 0.4 | - | 4.7k to 10k pull-up to Vcc, measured at SFP side of connector | ||
| SFP input high | VIH | 2.8 | - | Vcc+0.3 | - | 4.7k to 10k pull-up to Vcc, measured at SFP side of connector | ||
High-Speed Electrical Interface, Transmission Line-SFP |
||||||||
| Tx output impedance | Zout,TX | - | 100 | - | Ohm | - | ||
| Rx input impedance | Zin,RX | - | 100 | - | Ohm | - | ||
High-Speed Electrical Interface, Host-SFP |
||||||||
| CML Inputs(Differential) |
Vin | 250 | - | 1200 | mV | AC coupled inputs | ||
| CML outputs(Differential) | Vout | 350 | - | 800 | mV | CML outputs(Differential) | ||
| Rise/Fall time | Tr,Tf | - | 20 | - | psec | 20%-80% | ||
| Tx input impedance | Zin | - | 100 | - | Ohm | Differential ended | ||
| Rx output impedance | Zout | - | 100 | - | Ohm | Differential ended | ||
引腳說明
PIN DESCRIPTIONS
| Pin No. | Name | Function | Plug Seq. | Notes | ||||
| 1 | VeeT | Transmitter ground | 1 | - | ||||
| 2 | TX Fault | Transmitter fault indication | 3 | Not used | ||||
| 3 | TX Disable | Transmitter disable | 3 | Note1 | ||||
| 4 | MOD-DEF2 | Module definition 2 | 3 | Note2 | ||||
| 5 | MOD-DEF1 | Module definition 1 | 3 | Note2 | ||||
| 6 | MOD-DEF0 | Module definition 0 | 3 | Note2 | ||||
| 7 | RS0 | No connection required | 3 | - | ||||
| 8 | LOS | Loss of signal | 3 | RX_LOSS | ||||
| 9 | RS1 | No connection required | 1 | - | ||||
| 10 | VeeR | Receiver ground | 1 | - | ||||
| 11 | VeeR | Receiver ground | 1 | - | ||||
| 12 | RD- | Inv. Received data out | 3 | - | ||||
| 13 | RD+ | Received data out | 3 | - | ||||
| 14 | VeeR | Receiver ground | 1 | - | ||||
| 15 | VccR | Receiver power | 2 | - | ||||
| 16 | VccT | Transmitter power | 2 | - | ||||
| 17 | VeeT | Transmitter ground | 1 | - | ||||
| 18 | TD+ | Transmit data in | 3 | - | ||||
| 19 | TD- | Inv. Transmit data in | 3 | - | ||||
| 20 | VeeT | Transmitter ground | 1 | - | ||||
Note1: TX disable is an input that is used to shut down the transmitter optical output. It is pulled up within the module with a 4.7–10K? resistor. Its states are:
Low (0–0.8V): Transmitter on
(>0.8, < 2.0V): Undefined
High (2.0 – 3.465V): Transmitter Disabled
Note2: Mod-Def 0,1,2. These are the module definition pins. They should be pulled up with a 4.7K–10K?
resistor on the host board. The pull-up voltage shall be VccT or VccR.
Mod-Def 0 is grounded by the module to indicate that the module is present.
Mod-Def 1 is the clock line of two wire serial interface for serial ID.
Mod-Def 2 is the data line of two wire serial interface for serial ID.

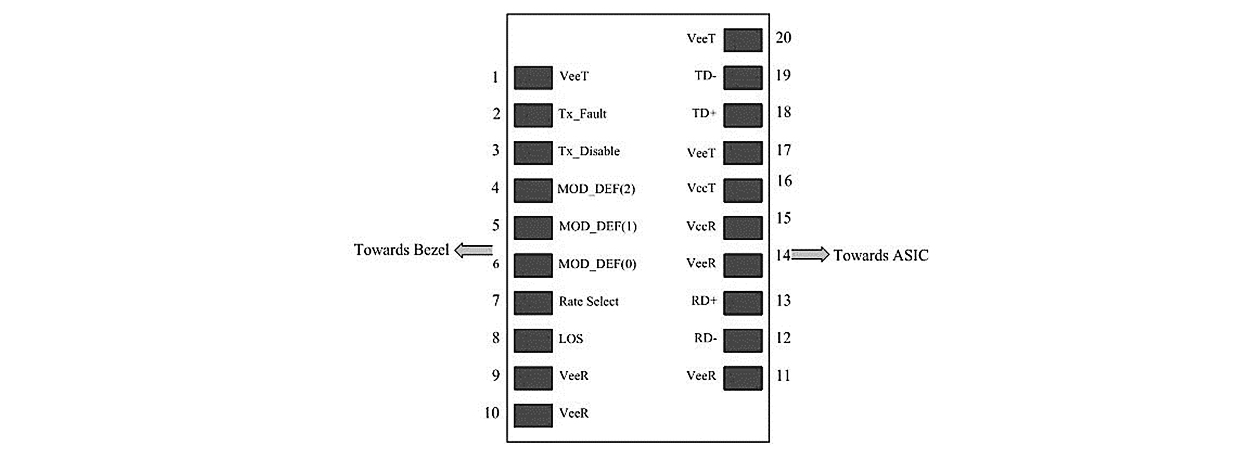

The following is the Diagram of host board connector block pin numbers and names
串行通信協議
SERIAL COMMUNICATION PROTOCOL
JFOPT Copper SFPs support the 2-wire serial communication protocol outlined in the SFP MSA, These SFP use a 128 byte EEPROM with an address of A0H.
EEPROM串行ID存儲器內容
EEPROM SERIAL ID MEMORY CONTENTS
Accessing Serial ID Memory uses the 2 wire address 1010000X (A0H). Memory Contents of Serial ID are shown in Table 1.
Table 1 Serial ID Memory Contents |
||||||||
| Data Addr | Field Size(Byte) | Name of Filed | Description of Field | Coded Value | Hex | |||
| BASE ID FIELDS | ||||||||
| 0 | 1 | Identifier | Typeof serial transceiver | SFP+ | 03 | |||
| 1 | 1 | Ext.Identifier | Extended identifier of type of serial transceiver | MOD_DEF 4 | 04 | |||
| 2 | 1 | Connector | Code for connector type | RJ45 | 22 | |||
| 3 | 8 | Transceiver | 10G Ethernet compliance codes & infiniband compliance codes | - | 00 | |||
| 4 | Part of SONET compliance codes | - | 00 | |||||
| 5 | SONET compliance codes | - | 00 | |||||
| 6 | Ethernet compliance codes | - | 00 | |||||
| 7 | Fiber channel link length & part of Fibre channel technology |
- | 00 | |||||
| 8 | Part of fiber channel transmitter technology | - | 00 | |||||
| 9 | Fiber channel transmission media | - | 00 | |||||
| 10 | Fiber channel speed | - | 00 | |||||
| 11 | 1 | Encoding | Code for high speed serial encoding algorithm | 64B/66B | 06 | |||
| 12 | 1 | BR, Nominal | Nominal signalling rate, units of 100MBd. | 10.3Gbps | 67 | |||
| 13 | 1 | Rate Identifier | Typeof rate select functionality | - | 00 | |||
| 14 | 1 | Length(SMF,km) | Link length supported for single mode fiber, units of km | - | 00 | |||
| 15 | 1 | Length (SMF) | Link length supported for single mode fiber, units of 100 m |
- | 00 | |||
| 16 | 1 | Length (50um) | Link length supported for 50um OM2 fiber, units of 10 m | - | 00 | |||
| 17 | 1 | Length (62.5um) | Link length supported for 62.5um OM1 fiber, units of 10 m | - | 00 | |||
| 18 | 1 | Length (Copper) | Link length supported for copper, units of meters | 30m | 1E | |||
| 19 | 1 | Length (OM3) | Link length supported for 50um OM3 fiber, units of 10 m | - | 00 | |||
| 20 | 16 | Vendor name | Vendor name (ASCII) | E | 45 | |||
| 21 | o | 6F | ||||||
| 22 | p | 70 | ||||||
| 23 | t | 74 | ||||||
| 24 | o | 6F | ||||||
| 25 | l | 6C | ||||||
| 26 | i | 69 | ||||||
| 27 | n | 6E | ||||||
| 28 | k | 6B | ||||||
| 29 | - |
20 | ||||||
| 30 | - |
20 | ||||||
| 31 | - |
20 | ||||||
| 32 | - |
20 | ||||||
| 33 | - |
20 | ||||||
| 34 | - |
20 | ||||||
| 35 | - |
20 | ||||||
| 36 | 1 | Transceiver | Extended compliance codes | 10GBASE-T Short Reach (30 meters) |
1C | |||
| 37 | 3 | Vendor OUI | SF P vendor IEEE company ID | - | 00 | |||
| 38 | - | 00 | ||||||
| 39 | - | 00 | ||||||
| 40 | 16 | Vendor PN | Part number provided by vendor (ASCII) | E | 45 | |||
| 41 | O | 4F | ||||||
| 42 | L | 4C | ||||||
| 43 | T | 54 | ||||||
| 44 | - | 2D | ||||||
| 45 | C | 43 | ||||||
| 46 | 9 | 39 | ||||||
| 47 | 6 | 36 | ||||||
| 48 | - | 2D | ||||||
| 49 | 0 | 30 | ||||||
| 50 | 2 | 32 | ||||||
| 51 | 20/2D | |||||||
| 52 | 20/49 | |||||||
| 53 | - |
20 | ||||||
| 54 | - |
20 | ||||||
| 55 | - |
20 | ||||||
| 56 | 4 | Vendor rev | Revision level for part number provided by vendor (ASCII) | 1 | 31 | |||
| 57 | . | 2E | ||||||
| 58 | 0 | 30 | ||||||
| 59 | - |
20 | ||||||
| 60 | 2 | Wavelength | Laser wavelength | - | 00 | |||
| 61 | 00 | |||||||
| 62 | 1 | Reserved | 00 | |||||
| 63 | 1 | CC_BASE | Check code for base ID fields (addresses 0 to 62) | Note3 | xx | |||
| 64 | 2 | Options | Indicates which optional transceiver signals are implemented | TX_DISABLEsignal,Rx_LOS | 00 | |||
| 65 | 12 | |||||||
| 66 | 1 | BR, max | Upper bitrate margin, units of % | - | 00 | |||
| 67 | 1 | BR, min | Lower bitrate margin, units of % | - | 00 | |||
| 68 | 16 | Vendor SN | Serial number provided by vendor(ASCII) | x | xx | |||
| 69 | x | xx | ||||||
| 70 | x | xx | ||||||
| 71 | x | xx | ||||||
| 72 | x | xx | ||||||
| 73 | x | xx | ||||||
| 74 | x | xx | ||||||
| 75 | x | xx | ||||||
| 76 | x | xx | ||||||
| 77 | x | xx | ||||||
| 78 | - |
20 | ||||||
| 79 | - |
20 | ||||||
| 80 | - |
20 | ||||||
| 81 | - |
20 | ||||||
| 82 | - |
20 | ||||||
| 83 | - |
20 | ||||||
| 84 | 8 | Date code | Vendor’s manufacturing date code | Year | xx | |||
| 85 | Year | xx | ||||||
| 86 | Month | xx | ||||||
| 87 | Month | xx | ||||||
| 88 | Day | xx | ||||||
| 89 | Day | xx | ||||||
| 90 | - |
20 | ||||||
| 91 | - |
20 | ||||||
| 92 | 1 | Diagnostic monitoring type | Typeof diagnostic monitoring is implemented | diagnostic monitoring is not implemented |
00 | |||
| 93 | 1 | Enhanced options | Optional enhanced features are implemented | Optional enhanced features are not implemented |
00 | |||
| 94 | 1 | SFF-8472 Compliance | Revision of SFF-8472 the transceiver complies with | Digital diagnostic functionality not included or undefined |
00 | |||
| 95 | 1 | CC_EXT | Check code for the extended ID fields (addresses 64 to 94) | Note4 | xx | |||
Note3. The check code shall be the low order 8 bits of the sum of the contents of all the bytes from byte 0 to byte 62, inclusive.
Note4. The check code shall be the low order 8 bits of the sum of the contents of all the bytes from byte 64 to byte 94, inclusive.
產品包裝
PRODUCT PACKAGING
產品認證
PRODUCT CERTIFICATION

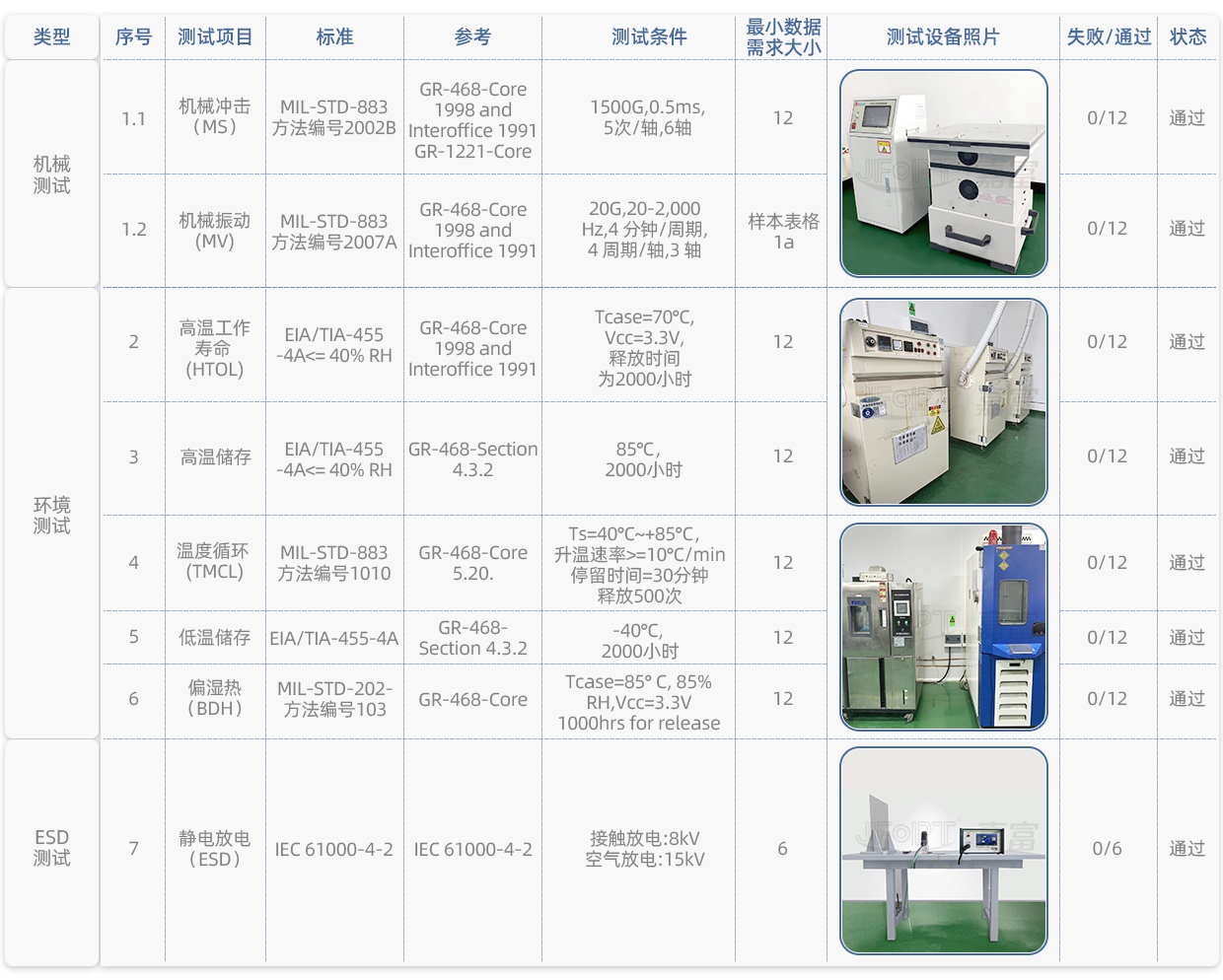

質量優勢
