產品型號 | JFTSM-SFP28BD-25-1213-20(ELR)-LC | 工廠品牌 | JFOPT嘉富 |
封裝形式 | SFP28 | 光口類型 | 單聯 LC |
最高總速率 | 25.78Gbps | 每通道速率 | - |
最大傳輸距離 | 20km | ||
工作波長 | 1270nm-TX/1330nm-RX | 工作電壓 | 3.3V |
光纖型號 | SMF | 纖芯尺寸 | 9/125 |
發射器類型 | DFB BiDi | 接收器類型 | PIN |
發射功率 | 0~6dBm | 接收靈敏度 | <-14dBm |
數字診斷(DOM) | YES | 接收過載 | 2.5dBm |
功耗 | ≤1.2W | 支持協議 | eCPRI, SFF-8472, SFF-8432, SFF-8431 |
工作溫度(商業級) | 0℃~+70℃ | 儲存溫度(商業級) | -40℃~+85℃ |
生產線介紹
PRODUCTION LINE INTRODUCTION
JFOPT嘉富持續投入光模塊生產領域,產品覆蓋1*9、SFP、10G、25G、100G、200G、400G、800G GPON/EPON/XG/XGSPON OLT等全系列光模塊。同時為下游同行提供TOSA、ROSA、BOSA等光器件半成品解決方案。JFOPT嘉富生產線具備日產量一萬只光模塊、兩萬只光器件的能力。此外,JFOPT嘉富光模塊擁有業界領先的耐高溫、抗干擾特性,廣泛應用于計算中心、運營商、交通安防、電力設施等行業領域。
產品介紹
PRODUCT PRESENTATION

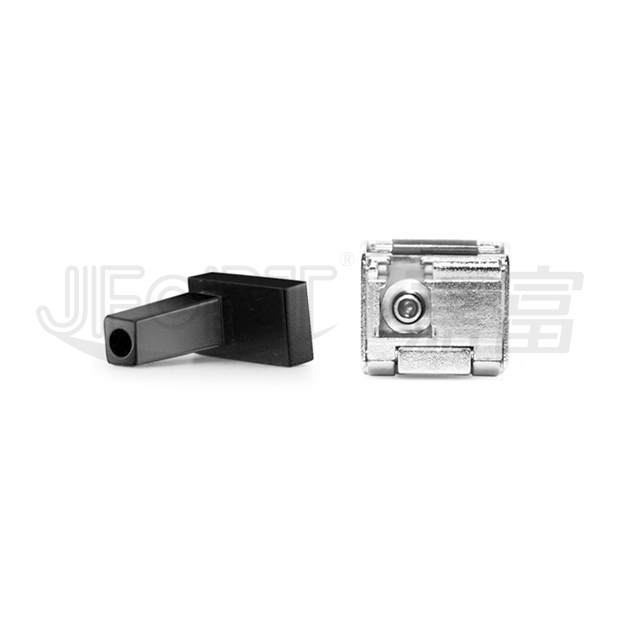

JFOPT SFP28 BIDI 25G 1270/1330nm 20km ELR LC SX光模塊是一款專為單模光纖雙向光傳輸設計的高性能模塊,支持高達20公里的傳輸距離。該模塊符合SFF-8472、SFF-8402、SFF-8432標準及SFF-8431適用章節規范,并通過SFF-8472定義的雙線串行接口實現數字診斷監控功能,確保可靠性能與精準監測,可無縫集成于高速網絡應用。
光模塊系列產品
TRANSCEIVER SERIES PRODUCTS
生產及檢測設備
PRODUCTION & TESTING EQUIPMENT
產品特點
FEATURES
Up to 20 km transmission distance | LC single connector | ||||||||
Low power consumption <1.2W | -40℃ to 85℃ operating case temperature range | ||||||||
Single 3.3V±5% power supply | Compliant with SFF-8472 |
應用范圍
APPLICATION
25GBASE-LR | CPRI option 10 / eCPRI |
符合標準
STANDARD COMPLIANCE
訂購信息
ORDERING INFORMATION
Form Factor | Data Rate(Gb/s) | Laser | Average Power (dBm) |
Detector | OMA Sensitivity 5E-5 (dBm) |
Top (℃) |
Reach (km) |
||
SFP28 | 25.78125 | 1270nm DFB | 0~6 | PIN | <-14 | -40~85 | 20 |
絕對最大額定值
ABSOLUTE MAXIMUM RATINGS
Parameter | Symbol | Unit | Min. | Max. | |||||
Storage temperature range | TS | °C | -40 | 85 | |||||
Relative humidity | RH | % | 0 | 85 | |||||
Supply voltage | VCC | V | -0.3 | 3.6 |
建議的操作條件
RECOMMENDED OPERSTING CONDITIONS
Parameter | Symbol | Unit | Min. | Typ. | Max. | ||||
Operating case temperature range | Tc | ℃ | -40 | - | 85 | ||||
Power supply voltage | VCC | V | 3.135 | 3.3 | 3.465 | ||||
Bit rate | BR | Gb/s | 24.33024 | 25.78125 | - | ||||
Max. supported link length | L | km | 10 | 20 | - |
電氣特性
ELECTRICAL CHARACTERISTICS
Parameter | Symbol | Unit | Min. | Typ. | Max. | Note | |||
Supply voltage | VCC | V | 3.14 | 3.3 | 3.46 | - | |||
Supply current | Icc | mA | - | - | 360 | @3.3V | |||
Transmitter |
|||||||||
Input differential impedance | Rin | Ω | - | 100 | - | - | |||
Single ended data input swing | VIN | mVp-p | 90 | - | 450 | - | |||
Transmit disable voltage | VDIS | V | 2 | - | VCCHOST | - | |||
Transmit enable voltage | VEN | V | VEE | - | VEE+0.8 | - | |||
Transmit fault assert voltage | VFA | V | 2.2 | - | VCCHOST | - | |||
Transmitfault de-assert voltage | VFDA | V | VEE | - | VEE+0.4 | - | |||
Receiver |
|||||||||
Single ended data output swing |
VOD | mVp-p | 200 | - | 450 | - | |||
LOS fault | VLOSFT | V | 2.2 | - | VccHOST | - | |||
LOS normal | VLOSNR | V | VEE | - | Vee+0.4 | - |
光學特性
OPTICAL CHARACTERISTICS
Parameter | Symbol | Unit | Min. | Typ. | Max | Notes | |||
Transmitter |
|||||||||
Center wavelength range | λ | nm | 1320 | - | 1340 | Downstream | |||
- | - | 1280 | Upstream | ||||||
Spectral width | -20dB | - | nm | - | - | 1 | - | |||
Side mode suppression ratio | SMSR | dB | 30 | - | - | - | |||
Average launch power | PAVG | dBm | 0 | - | 6 | - | |||
OMA launch power | POMA | dBm | -2 | - | - | - | |||
Transmitter and dispersion penalty 25G | BER=5E-5 | TDP | dB | - | - | 4 | - | |||
Average launch power of OFF transmitter |
POFF | dBm | - | - | -30 | - | |||
Extinction ratio | ER | dB | 3.5 | - | - | - | |||
RIN20OMA | RIN | dB/Hz | - | - | -130 | - | |||
Optical return loss tolerance | - | dB | - | - | 20 | - | |||
Mask margin | - | % | 5 | - | - | 1 | |||
Note 1: Template: {0.31, 0.40, 0.45, 0.34, 0.38, 0.40}, Hit Ratio: 5E-5 |
Parameter | Symbol | Unit | Min. | Typ. | Max | Notes | |||
Receiver |
|||||||||
Center wavelength | λr | nm | 1260 | 1270 | 1280 | Downstream | |||
1320 | 1330 | 1340 | Upstream | ||||||
Overload | - | dBm | 2.5 | - | ![]() |
- | |||
OMA receiver sensitivity up to 25G 5E-5 | POMA | dBm | - | - | -14 | - | |||
LOS de-assert | LOSA | dBm | -30 | ![]() |
- | - | |||
Los assert | LOSD | dBm | ![]() |
![]() |
-17 | - | |||
Los hysteresis | - | dB | 0.5 | ![]() |
- | - |
引腳功能定義
PIN FUNCTION DEFINITIONS
收發器引腳說明
TRANSCEIVER PIN DESCRIPTIONS
Pin No. | Symbol | Logic | Description | ||||||
1 | VeeT | - | Connected to signal ground on the host board. | ||||||
2 | TX fault | LVTTL output | Module transmitter fault output | ||||||
3 | TX disable | LVTTL input | Module transmitter disable control | ||||||
4 | SDA | LVTTL input/output | 2-wire serial interface data | ||||||
5 | SCL | LVTTL input/output | 2-wire serial interface clock | ||||||
6 | MOD_ABS | - | Module absent (connected to Module ground) | ||||||
7 | RS0 | LVTTL input | Rate select 0 (Rx): Low=CDR Bypass; high=CDR select | ||||||
8 | LOS | LVTTL output | Receiver loss of signal | ||||||
9 | RS1 | LVTTL input | Rate select 1 (Tx): Low=CDR Bypass; high=CDR select | ||||||
10,11,14 | VeeR | - | Connected to signal ground on the host board. | ||||||
12 | RD- | CML output | Receiver inverted data output, internally AC coupled and terminated. | ||||||
13 | RD+ | CML output | Receiver non-inverted data output, internally AC coupled and terminated. | ||||||
15 | VccR | - | Receiver power 3.3V supply | ||||||
16 | VccT | - | Transmitter power 3.3V supply | ||||||
18 | TD+ | CML input | Transmitter non-inverted data input, internally AC coupled and terminated. | ||||||
19 | TD- | CML input | Transmitter inverted data Input, internally AC coupled and terminated |
